Q1:
AS & A Level Physics - 9702 Paper 5 2016 Winter Zone 1
Share
Previous
Questions:
1/2
Topic: CH1 - PHYSICAL QUANTITIES & UNITS

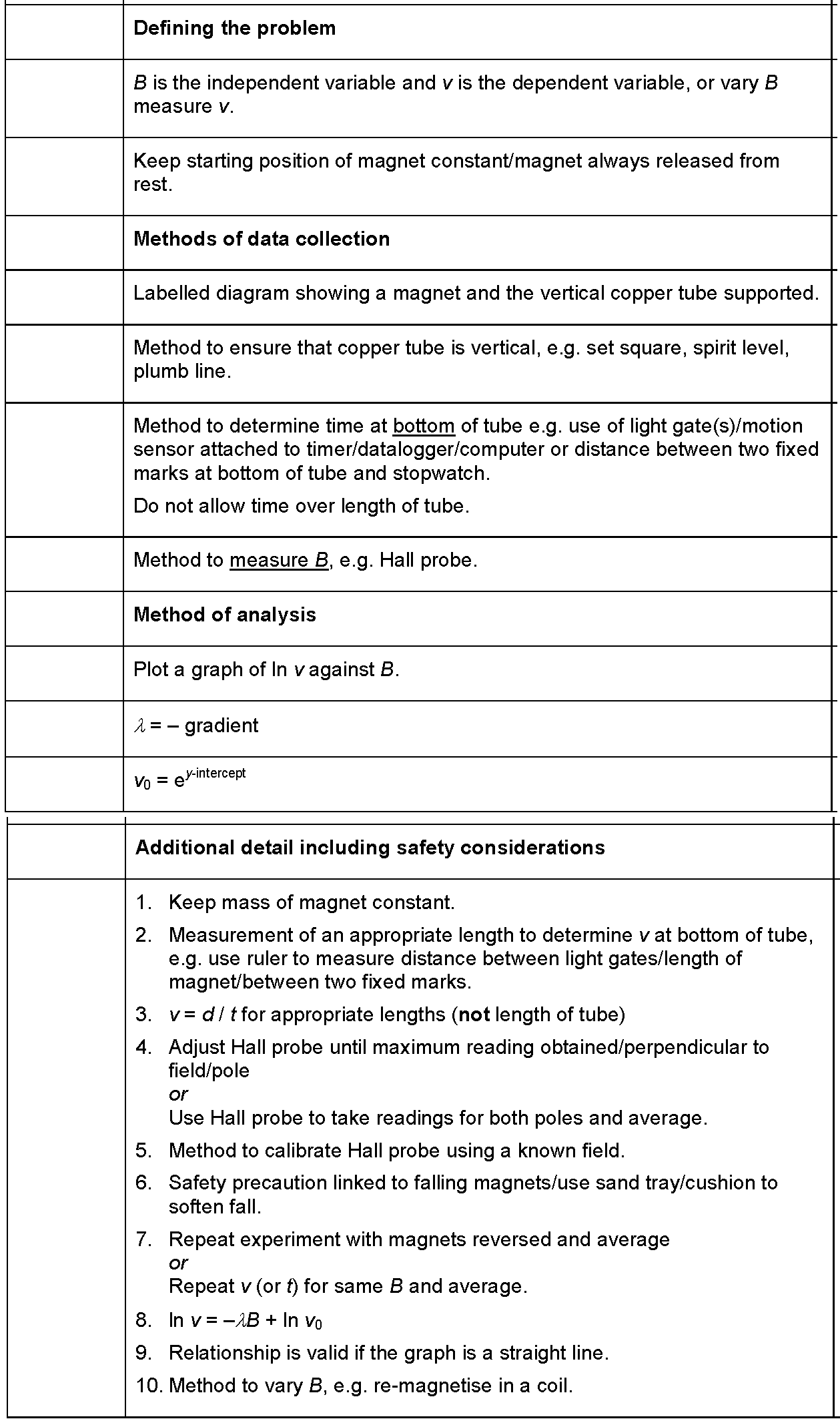

Solution
PRACTISE
Similar Questions
LEARN
Concepts with Sparky
More Questions from this Topic
Theory
CH1 - PHYSICAL QUANTITIES & UNITS
(a) The list below shows some SI quantities.
Underline the quantity that is not an SI base quantity.
charge current length time [1]
(b) A square so...
Summer
6
Theory
CH1 - PHYSICAL QUANTITIES & UNITS
The drag force $F_D$ acting on an object falling through air is given by
$F_D = \frac{1}{2}C \rho A v^2$
where $A$ is the cross-sectional area of th...
Summer
5
Theory
CH1 - PHYSICAL QUANTITIES & UNITS
The drag force $F_D$ acting on a sphere falling through a liquid is given by
$$F_D = 6 \pi \eta r v$$
where $r$ is the radius of the sphere,
$v$ is...
Summer
6
Theory
CH1 - PHYSICAL QUANTITIES & UNITS
(a) State what is meant by a vector quantity [2]
(b) A sphere falls vertically through a liquid that has density $830 \text{ kg m}^{-3}$. The sphere ...
Winter
5
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
What is a scalar quantity?
Summer
6
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
Which statement about physical quantities is correct?
Winter
4
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
What are the SI base units for the moment of a force?
Winter
5
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
Which unit is an SI base unit?
Summer
5
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
A physical quantity consists of a magnitude and a unit. Which row does not show a correct combination of a quantity and its unit? [Table_1]
Winter
3
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
Which statement about vector quantities is correct?
Winter
5
More Questions from year 2016
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
Which quantity with its unit is correct?
Summer
2
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
The luminosity $L$ of a star is given by $L = 4\pi r^2 \sigma T^4$ where $r$ is the radius of the star, $T$ is the temperature of the star, $\sig...
Summer
3
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
The diagram shows two vectors X and Y, drawn to scale. If X = Y − Z, which diagram best represents the vector Z?
Summer
3
MCQ
CH2 - MEASUREMENT TECHNIQUES
The diagram shows a cathode-ray oscilloscope (c.r.o.) being used to measure the rate of rotation of a flywheel.The flywheel has a small magnet M mount...
Summer
2
MCQ
CH2 - MEASUREMENT TECHNIQUES
A student determines the density $\rho$ of steel by taking measurements from a steel wire. mass $m = 6.2 \pm 0.1 \text{ g}$ length $l = 25.0 \pm 0.1 \...
Summer
3
MCQ
CH3 - KINEMATICS
The acceleration of free fall on the Moon is $1.6 \, \text{m}\,\text{s}^{-2}$. The Moon has no atmosphere. An astronaut standing on the surface of the...
Summer
2
MCQ
CH3 - KINEMATICS
A tennis ball is released from rest at the top of a tall building. Which graph best represents the variation with time $t$ of the acceleration $a$ of ...
Summer
3
MCQ
CH3 - KINEMATICS
The graph shows how the velocity $v$ of an object moving in a straight line varies with time $t$ from $t = 0$ to $t = T$.
Which graph represents th...
Summer
3
MCQ
CH4 - DYNAMICS
A ball falls vertically onto horizontal ground and rebounds, as shown.
The ball has momentum $p_1$ downwards just before hitting the ground. After ...
Summer
3
MCQ
CH4 - DYNAMICS
A sphere falls from rest through the air. The graph shows the variation with time of the sphere’s velocity.
Which diagram shows the forces ac...
Summer
3
