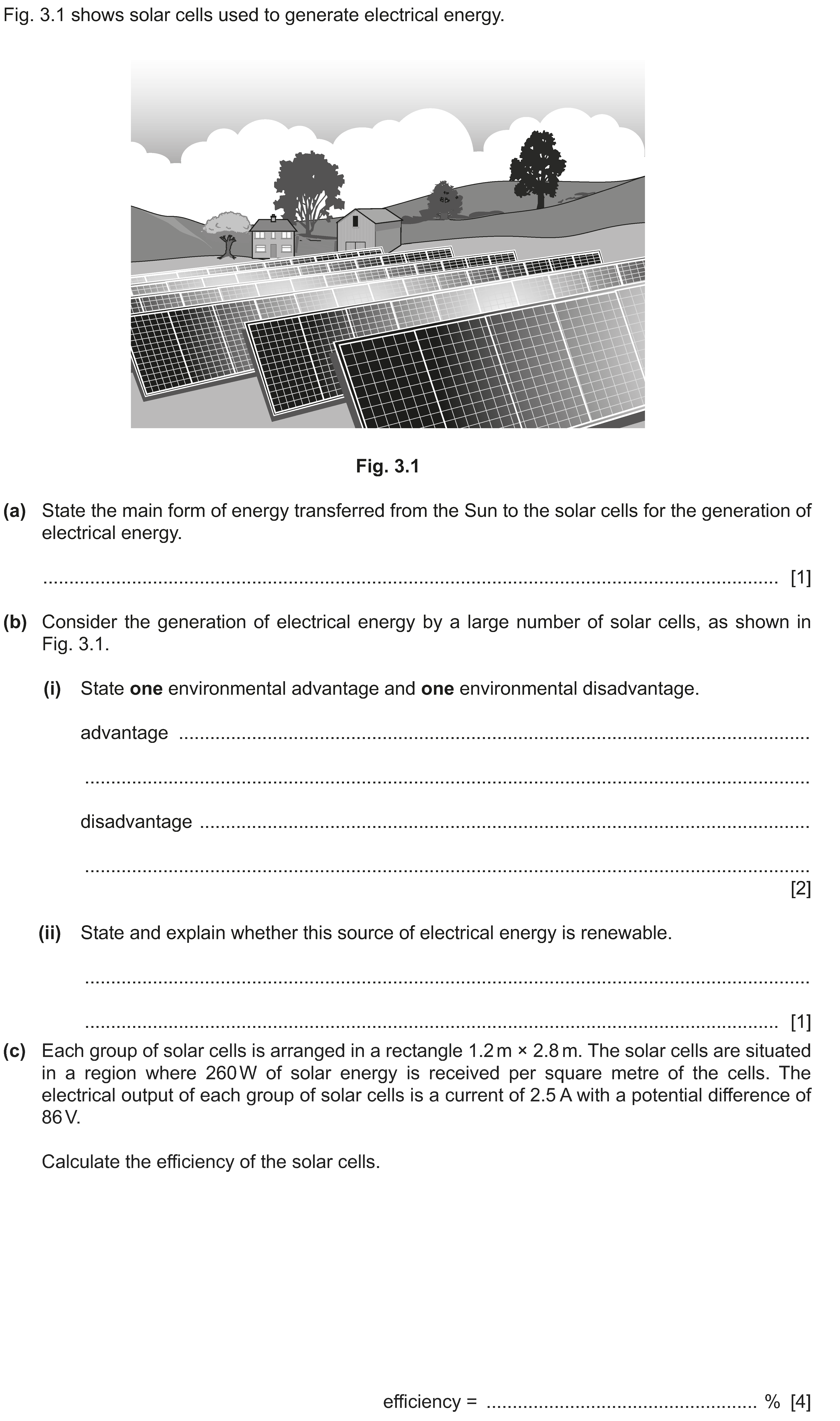

Q3:
Cambridge IGCSE Physics - 0625 - Supplement Paper 4 2019 Summer Zone 2
Share
Previous
Questions:
3/11
Topic: CH4 - FORCES AND ENERGY

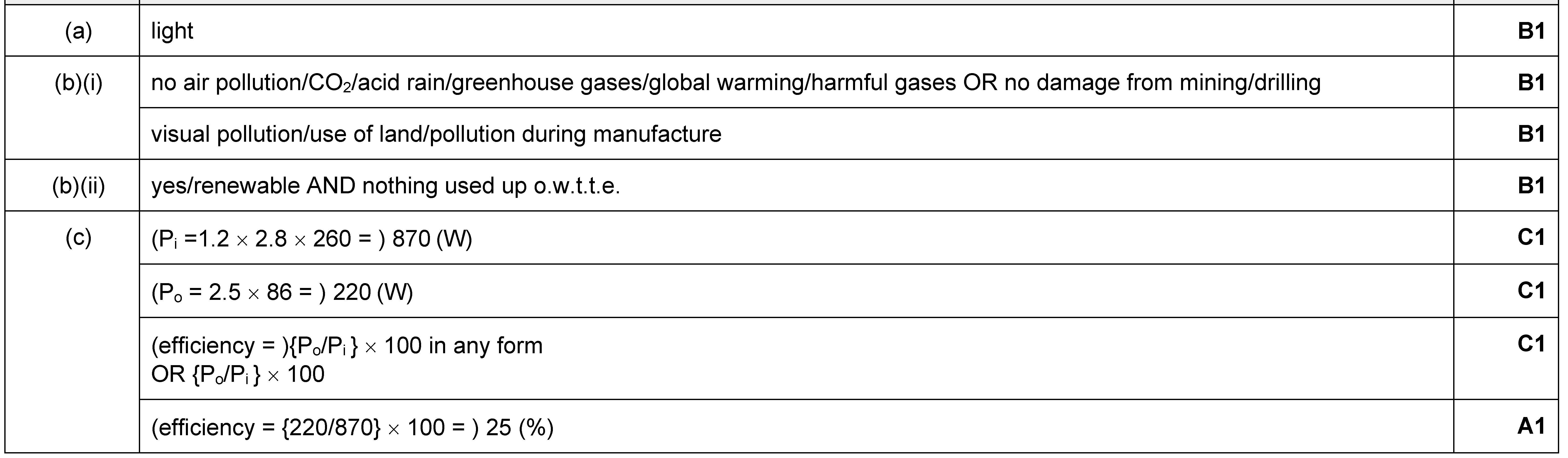

Solution
PRACTISE
Similar Questions
LEARN
Concepts with Sparky
More Questions from this Topic
Theory
CH4 - FORCES AND ENERGY
A car of mass 900 kg is travelling at a steady speed of 30 m/s against a resistive force of 2000 N, as illustrated in Fig. 2.1.(a) Calculate the kinet...
Summer
3
Theory
CH4 - FORCES AND ENERGY
A force $F$ moves a load from the bottom of a slope to the top. [Image_1: Diagram showing the slope with a force and labels r, p, q, and load.]The wor...
Winter
3
Theory
CH4 - FORCES AND ENERGY
Four people of equal weight on a beach use different routes to get to the top of a sea wall. Which person produces the greatest average power?[Table_1...
Summer
2
Theory
CH4 - FORCES AND ENERGY
Which of these is designed to change electrical energy into kinetic energy?A. a capacitorB. a generatorC. a motorD. a transformer
Winter
2
Theory
CH4 - FORCES AND ENERGY
(a) Energy from the Sun evaporates water from the sea. Some of this water eventually drives a hydroelectric power station. Give an account of the proc...
Winter
2
Theory
CH4 - FORCES AND ENERGY
A car is driven on a long journey along a flat, horizontal road. The car stops several times on the journey and its engine becomes hot.Which type of e...
Winter
2
Theory
CH4 - FORCES AND ENERGY
In which pair of energy sources are both sources renewable?A. oil and coalB. oil and tidalC. tidal and geothermalD. tidal and nuclear fission
Summer
3
Theory
CH4 - FORCES AND ENERGY
Fig. 2.1 shows a conveyor belt transporting a package to a raised platform. The belt is driven by a motor.(a) State three types of energy, other than ...
Summer
2
Theory
CH4 - FORCES AND ENERGY
Fig. 5.1 shows a model cable-car system. It is driven by an electric motor coupled to a gear system.The model cable-car has a mass of 5.0 kg and is li...
Winter
2
Theory
CH4 - FORCES AND ENERGY
Electricity can be obtained from different energy resources.Which energy resource is used to obtain electricity without producing heat to boil water?A...
Summer
2
More Questions from year 2019
MCQ
CH1 - MEASUREMENTS AND UNITS
Which quantity can be measured directly using a micrometer screw gauge?
Summer
1
MCQ
CH2 - FORCES AND MOTION
The velocity of an object increases from 30 m/s to 50 m/s in 5.0 seconds.What is the average acceleration of the object?
Summer
1
MCQ
CH2 - FORCES AND MOTION
A heavy metal ball falls vertically downwards through air past four equally spaced levels J, K, L and M.The times taken to fall from one level to the ...
Summer
1
MCQ
CH2 - FORCES AND MOTION
A body is moved from place X to place Y where the gravitational field strength is different. What happens to its mass and to its weight due to the mov...
Summer
1
MCQ
CH1 - MEASUREMENTS AND UNITS
The diagrams show four solid blocks with their dimensions and masses.Which block has the greatest density?
Summer
1
MCQ
CH3 - FORCES AND PRESSURE
A student wishes to determine the spring constant of a spring where it obeys Hooke’s law. Different loads are hung from the spring and its length is...
Summer
1
MCQ
CH2 - FORCES AND MOTION
A mass of 20 kg is held stationary by a rope passing over a frictionless pulley. What is the tension $T$ in the rope?
Summer
2
MCQ
CH2 - FORCES AND MOTION
A boat starts moving across a river at velocity $v$ perpendicular to the river bank. The boat encounters a current along the river of velocity $u$, as...
Summer
1
MCQ
CH2 - FORCES AND MOTION
A ball of mass 0.50 kg falls and hits the floor at 10 m/s. It rebounds at speed 8.0 m/s, as shown. The collision between the ball and the floor las...
Summer
1
MCQ
CH4 - FORCES AND ENERGY
An object falls from the top of a building that is 25 m high. Air resistance is negligible.What is the speed of the object when it hits the ground?
Summer
3
