Practice Questions:
AS & A Level Physics - 9702 Paper 4 2024 Summer Zone 2
Share
Previous
Questions:
10/10

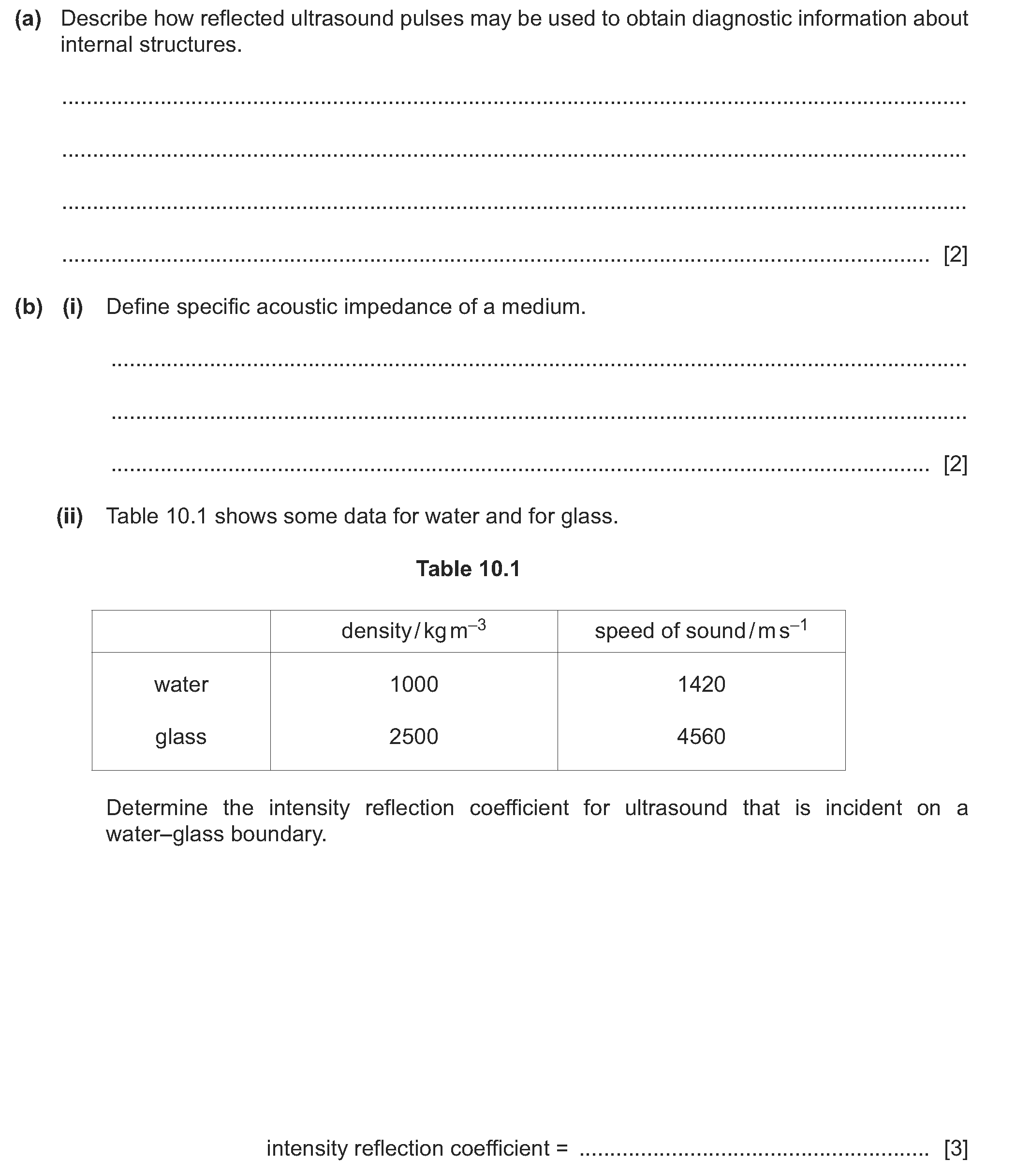

Topic: CH27 - MEDICAL IMAGING

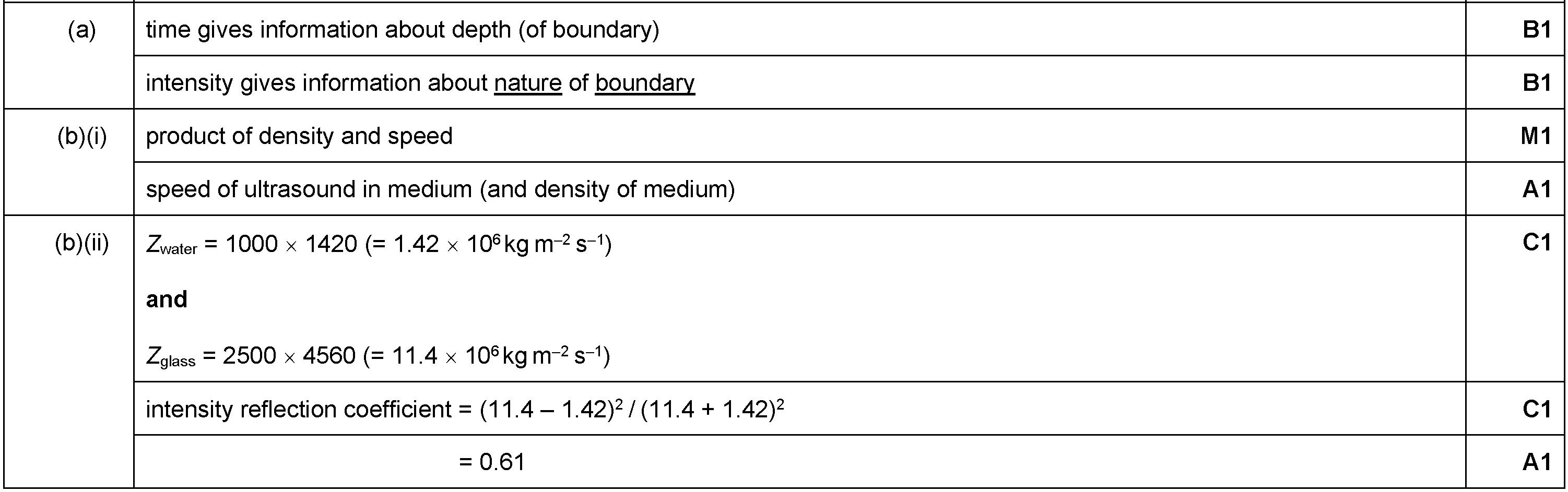

Solution
PRACTISE
Similar Questions
LEARN
Concepts with Sparky
Access AI-Features in
IB Past Papers App
IB Past Papers App
Access
AI-Features in
IB Past Papers App
AI-Features in
IB Past Papers App
Get exclusive access to our AI features such as instant feedback, similar questions and AI tutor sessions.
Related Questions from Similar Topic
Theory
CH27 - MEDICAL IMAGING
(a) Outline briefly the principles of computed tomography (CT scanning)..................................................................................
Winter
Theory
CH27 - MEDICAL IMAGING
(a) Outline briefly the principles of computed tomography (CT scanning)..................................................................................
Winter
Theory
CH27 - MEDICAL IMAGING
Outline the \textit{use} of ultrasound to obtain diagnostic information about internal body structures.
Summer
Theory
CH27 - MEDICAL IMAGING
(a) State the purpose of computed tomography (CT scanning)...............................................................................................
Summer
Theory
CH27 - MEDICAL IMAGING
Outline the \textit{use} of ultrasound to obtain diagnostic information about internal body structures.
Summer
Theory
CH27 - MEDICAL IMAGING
(a) State, for an X-ray image, what is meant by:(i) sharpness............................................................................................
Winter
Theory
CH27 - MEDICAL IMAGING
(a) A piezoelectric transducer containing a quartz crystal is used to obtain diagnostic information about internal structures.Describe the function of...
Winter
Theory
CH27 - MEDICAL IMAGING
(a) State, for an X-ray image, what is meant by:(i) sharpness............................................................................................
Winter
Theory
CH27 - MEDICAL IMAGING
(a) (i) Explain how X-rays are produced for use in medical diagnosis.....................................................................................
Summer
Theory
CH27 - MEDICAL IMAGING
(a) (i) Explain how X-rays are produced for use in medical diagnosis. ..................................................................................
Summer
More Questions from year 2024
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
Which unit is an SI base unit?
Summer
MCQ
CH1 - PHYSICAL QUANTITIES & UNITS
Which of the following could have the same units as force?
Summer
MCQ
CH3 - KINEMATICS
The velocity of an object changes from an initial velocity $u$ to a final velocity $v$. The vectors represent these velocities.
Which single vector r...
Summer
MCQ
CH3 - KINEMATICS
An object is moving with initial velocity $u$. The object then moves with uniform acceleration $a$ for time $t$ until it reaches final velocity $v$.
...
Summer
MCQ
CH3 - KINEMATICS
Which calculation produces a vector quantity?
Summer
MCQ
CH2 - MEASUREMENT TECHNIQUES
A thermometer can be read to an accuracy of ±0.5°C. This thermometer is used to measure a temperature rise from 40°C to 100°C. What is the percent...
Summer
MCQ
CH3 - KINEMATICS
The diagram shows the path of a golf ball.
Which row describes changes in the horizontal and vertical components of the golf ball’s velocity ...
Summer
MCQ
CH3 - KINEMATICS
An aircraft flies from London to Sydney in a time of 21 hours 40 minutes.
The distance travelled is 17 000 km.
What is the average speed of the airc...
Summer
MCQ
CH3 - KINEMATICS
A golf club hits a golf ball. The graph shows how the force $F$ on the ball varies with time $t$.
Which graph shows how the velocity $v$ of the bal...
Summer
MCQ
CH4 - DYNAMICS
What is meant by the mass and by the weight of an object on the Earth?
Summer
