Practice Questions:

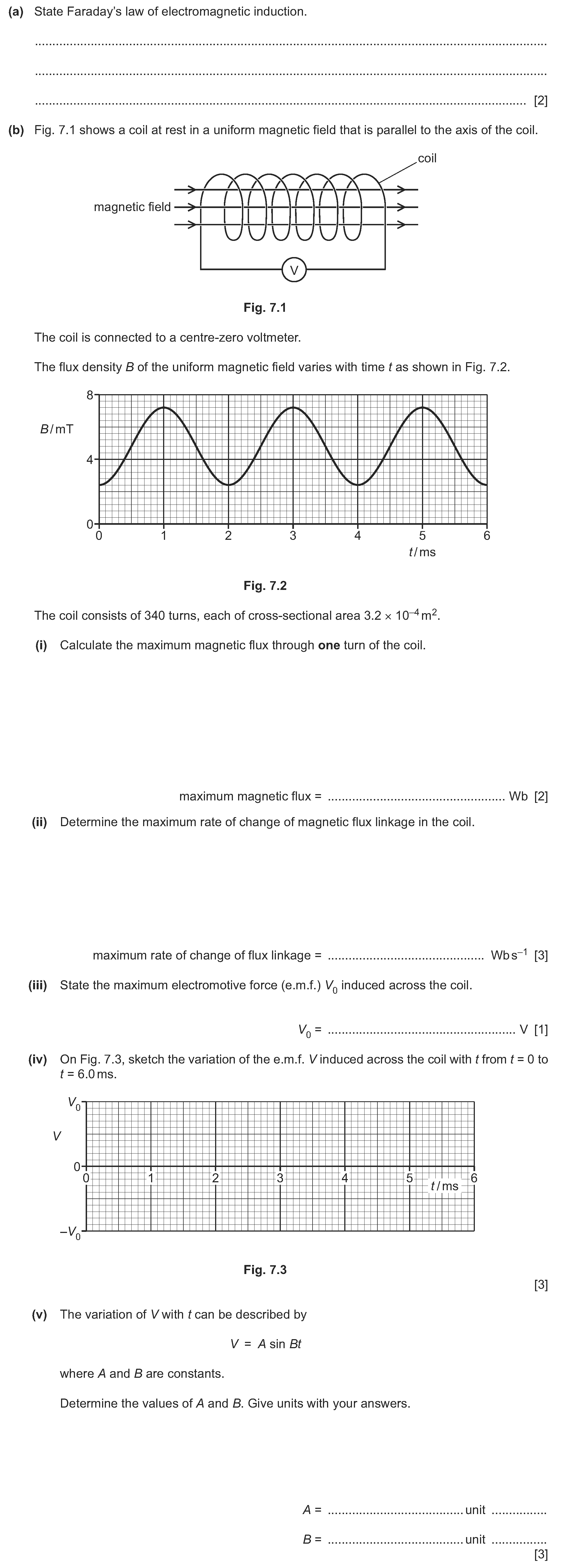

AS & A Level Physics - 9702 Paper 4 2024 Summer Zone 2
Share
Previous
Questions:
7/10
Topic: CH23 - ELECTROMAGNETIC INDUCTION

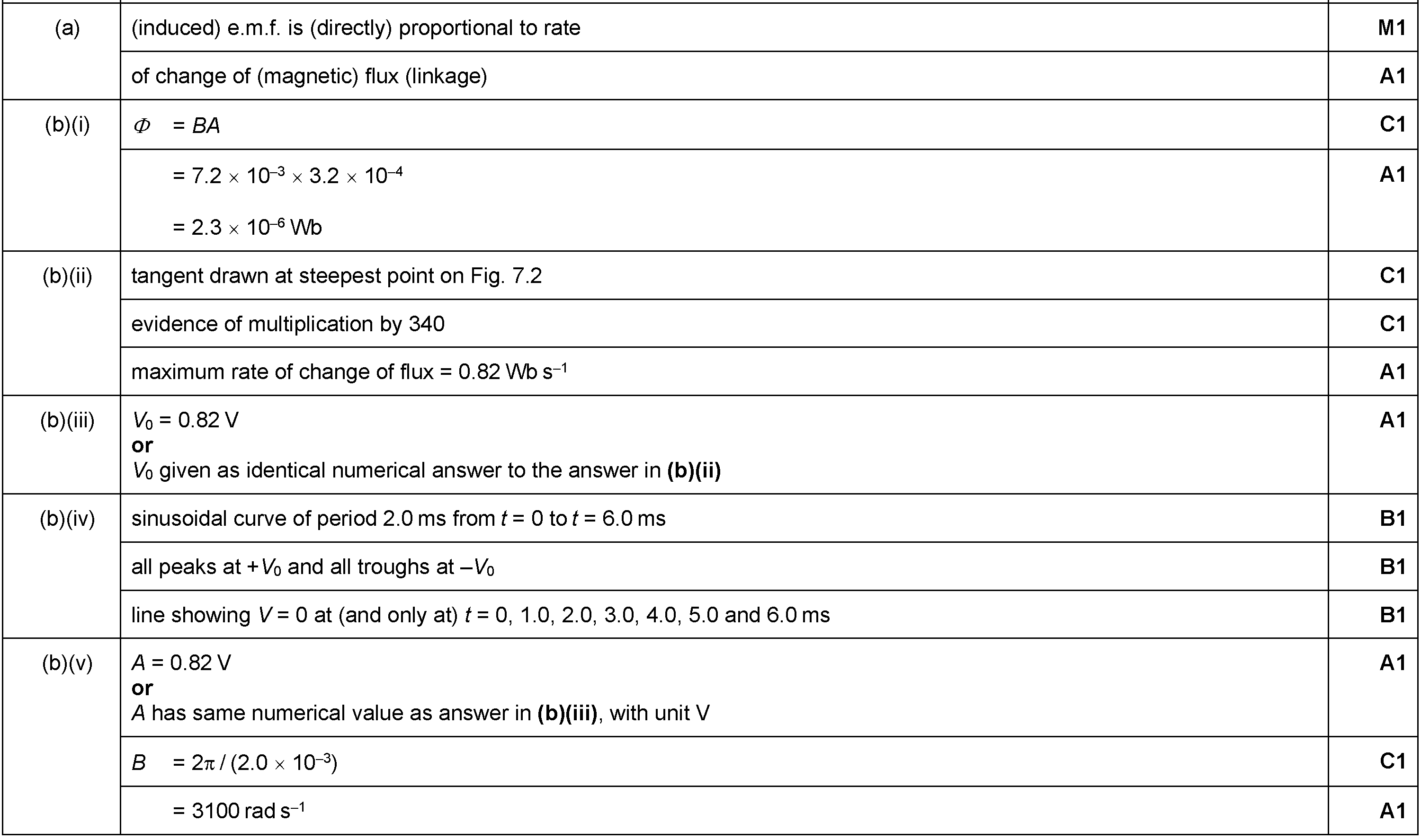

Solution
PRACTISE
Similar Questions
LEARN
Concepts with Sparky
Access AI-Features in
IB Past Papers App
IB Past Papers App
Access
AI-Features in
IB Past Papers App
AI-Features in
IB Past Papers App
Get exclusive access to our AI features such as instant feedback, similar questions and AI tutor sessions.
