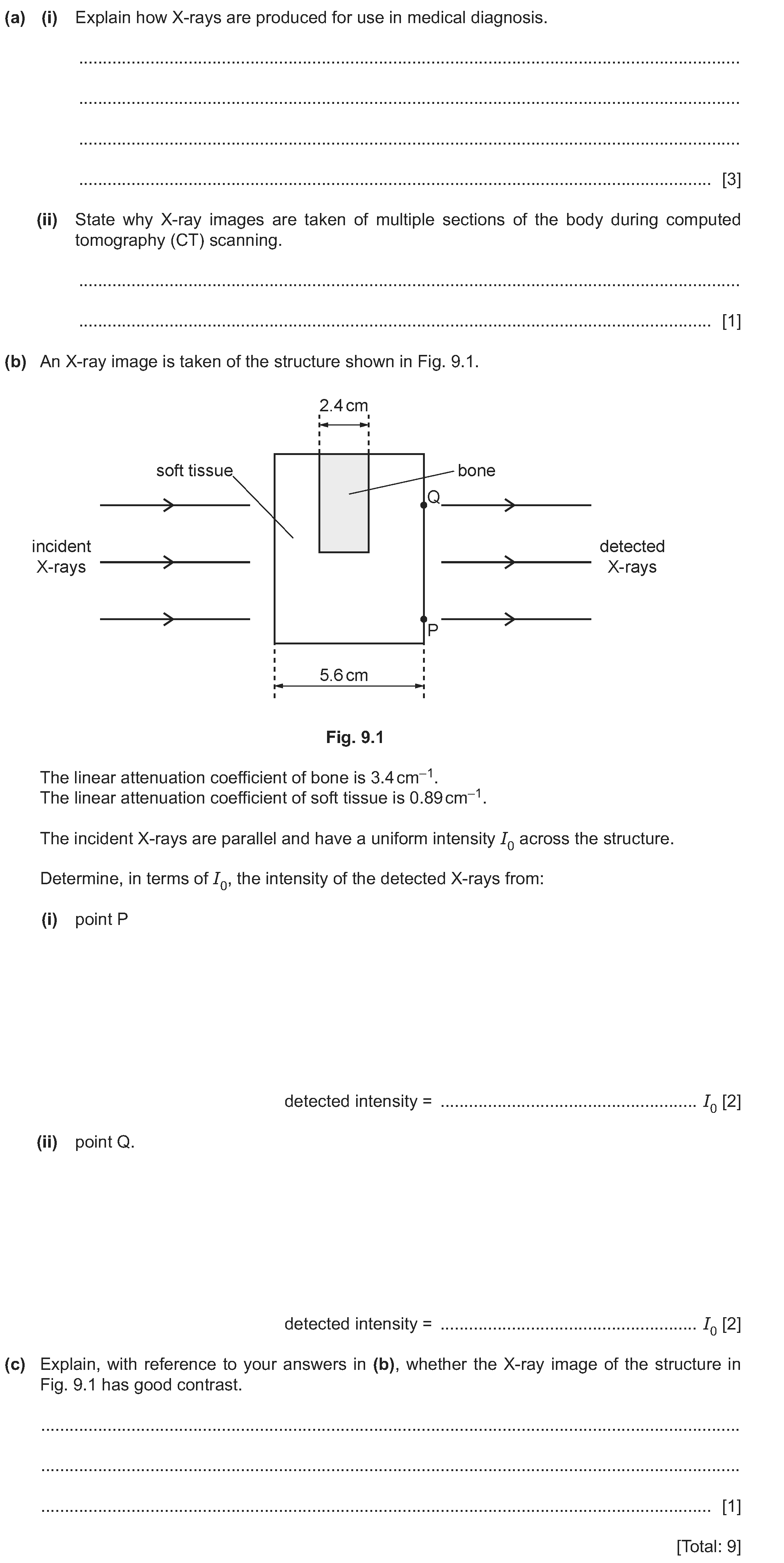

Q9:
AS & A Level Physics - 9702 Paper 4 2022 Summer Zone 3
Share
Previous
Questions:
9/10
Topic: CH27 - MEDICAL IMAGING

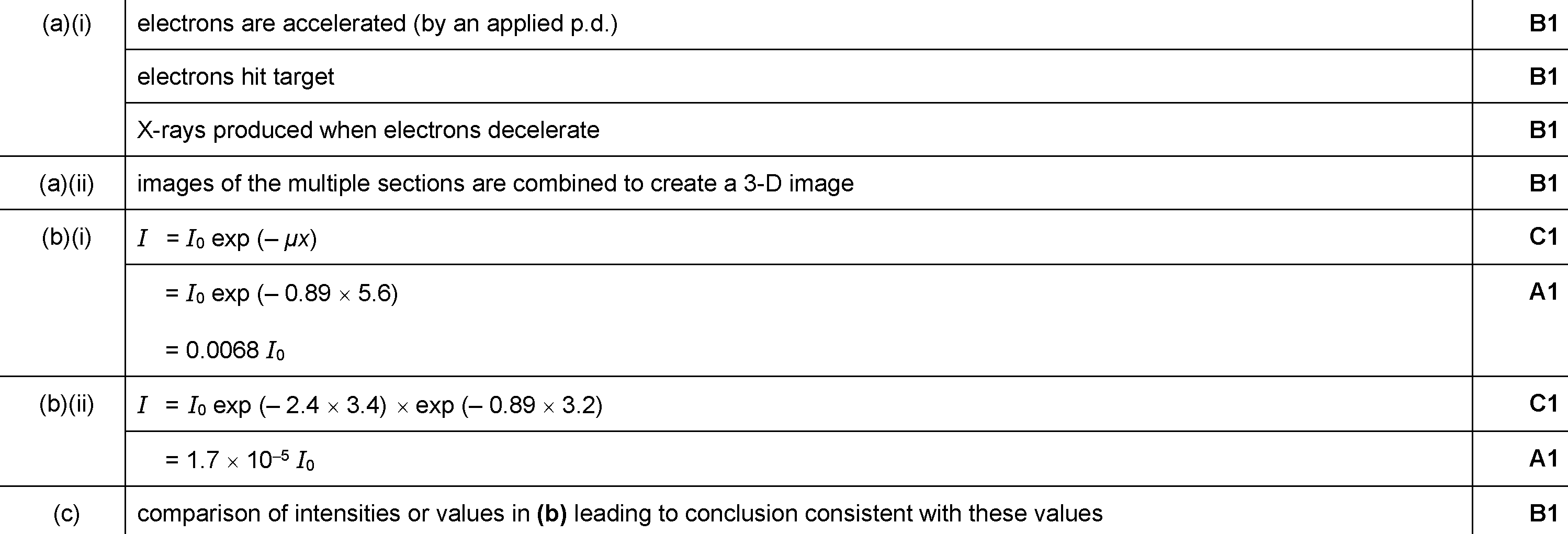

Solution
PRACTISE
