Theory

CH10 - ELECTRON AND ELECTRONICS

Fig. 11.1 shows an electron beam about to enter, at point A, the electric field between two charged metal plates.![Fig. 11.1](attachment://electron_be...

2012 Summer

3

Theory

CH10 - ELECTRON AND ELECTRONICS

Fig. 11.1 shows a cathode-ray tube connected to external voltage supplies and switches. The terminals labelled H.T. are connected to a high voltage so...

2011 Summer

3

Theory

CH10 - ELECTRON AND ELECTRONICS

Fig. 11.1 represents a cathode-ray tube containing a number of different parts. There are empty boxes connected to four of the parts. These boxes are ...

2009 Summer

2

Theory

CH10 - ELECTRON AND ELECTRONICS

Fig. 11.1 shows a tube that can be used to produce cathode rays. Metal plates above and below the tube have zero potential difference between them. (a...

2011 Winter

3

Theory

CH10 - ELECTRON AND ELECTRONICS

Fig. 12.1 shows parts of a tube in which cathode rays are produced.(a) What occupies the remaining space within the tube? Tick one box.air [ ]hydrogen...

2012 Winter

3

Theory

CH10 - ELECTRON AND ELECTRONICS

Fig. 11.1 shows a tube for producing cathode rays, connected to two voltage supplies and switches.(a) Which switch has to be closed in order to make t...

2011 Summer

3

Theory

CH10 - ELECTRON AND ELECTRONICS

(a) Complete Fig. 11.2 so that it shows a circuit that will cause the bell to ring when the magnet is taken away. [2] (b) Fig. 11.3 shows a door in a ...

2010 Winter

2

Theory

CH10 - ELECTRON AND ELECTRONICS

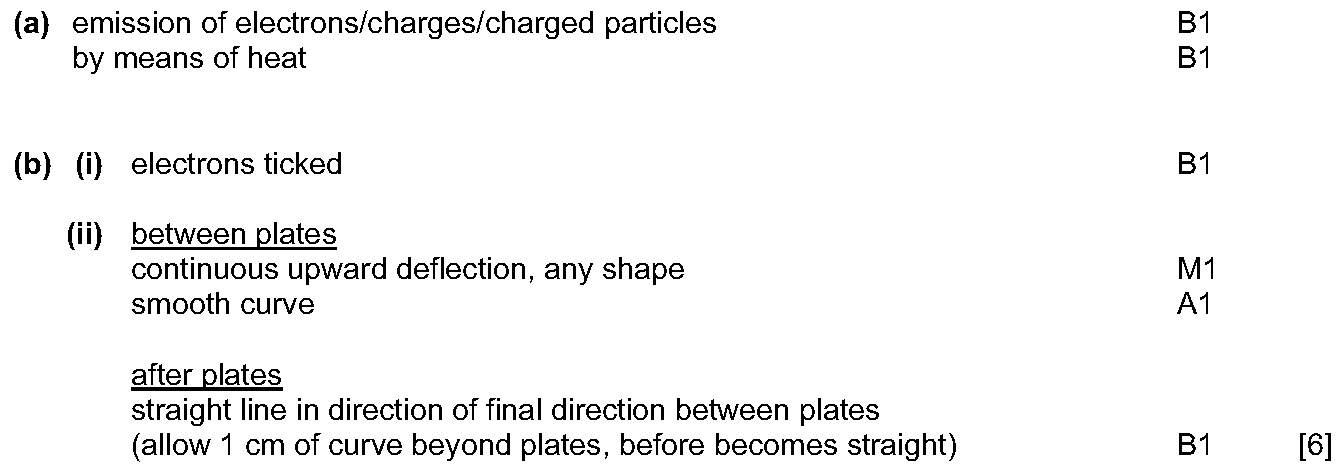

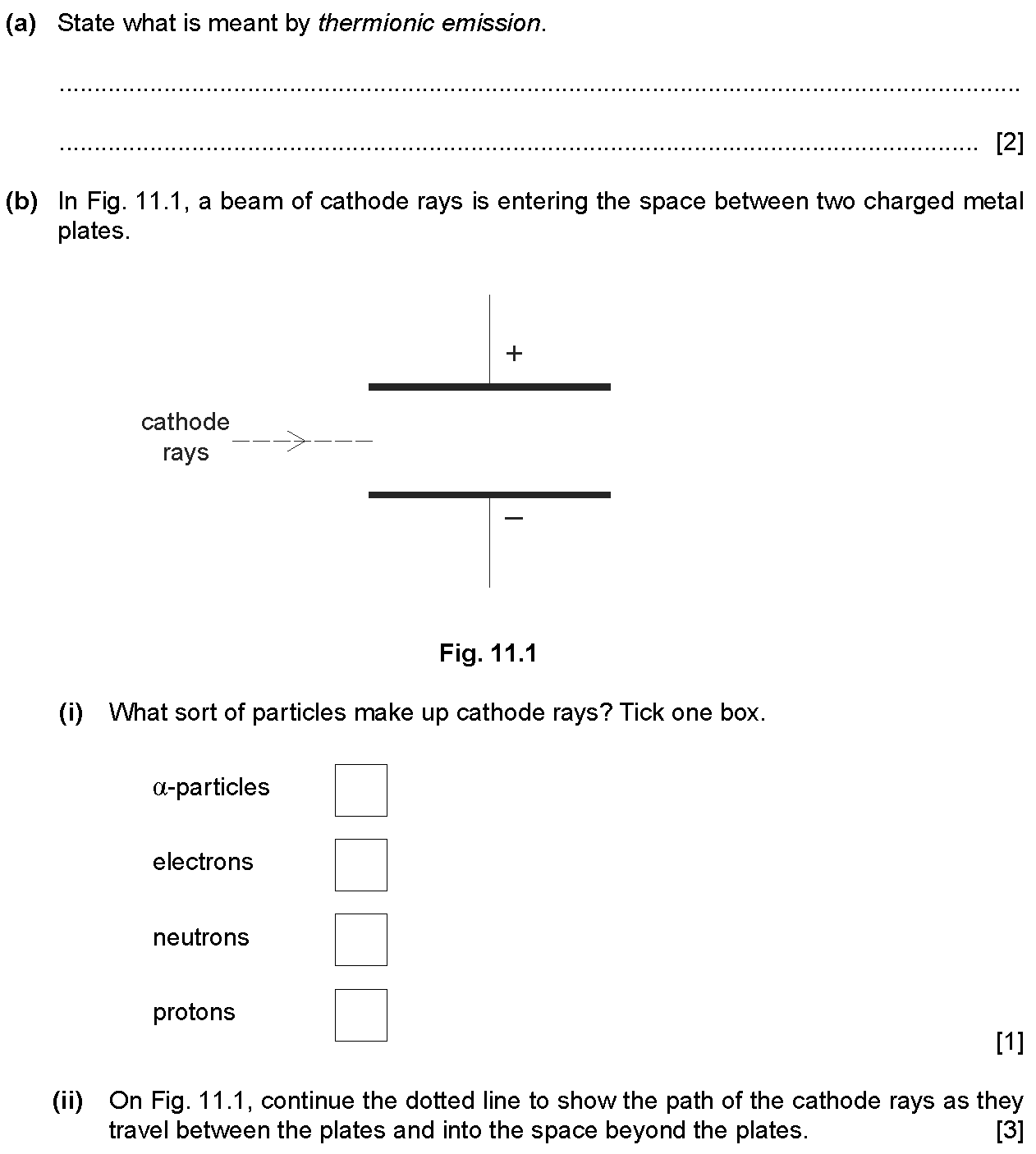

(a) State what is meant by \textit{thermionic emission}..................................................................................................

2010 Summer

3

Theory

CH10 - ELECTRON AND ELECTRONICS

Fig. 10.1 is a simplified drawing of a tube for producing, deflecting and detecting cathode rays.The cathode rays are represented by the broken line i...

2014 Winter

3

Theory

CH10 - ELECTRON AND ELECTRONICS

A camera has a circuit containing a light-dependent resistor (LDR). Fig. 10.1 shows part of this circuit. (a) Describe what happens to the resistance ...

2015 Winter

3

MCQ

CH1 - MEASUREMENTS AND UNITS

A scientist needs to determine the volume of a small, irregularly shaped rock sample. Only a rule and a measuring cylinder, partially filled with wate...

2010 Summer

2

MCQ

CH1 - MEASUREMENTS AND UNITS

A student uses a stopwatch to time a runner running around a circular track. The runner runs two laps (twice around the track). The diagrams show the ...

2010 Summer

2

MCQ

CH2 - FORCES AND MOTION

Two distance/time graphs and two speed/time graphs are shown. Which graph represents an object that is at rest?

2010 Summer

2

MCQ

CH2 - FORCES AND MOTION

A snail moves along a ruler. It takes 20s to move from Q to R.What is its average speed from Q to R?

2010 Summer

2

MCQ

CH2 - FORCES AND MOTION

Two blocks of metal X and Y hang from spring balances as shown in the diagram. What does the diagram show about X and Y?

2010 Summer

2

MCQ

CH2 - FORCES AND MOTION

The graph shows how weight varies with mass on planet P and on planet Q. An object weighs 400 N on planet P. The object is taken to planet Q. Whi...

2010 Summer

2

MCQ

CH1 - MEASUREMENTS AND UNITS

The diagram shows a rectangular block of density $2 \text{ g/cm}^3$. What is the mass of the block?

2010 Summer

1

MCQ

CH2 - FORCES AND MOTION

Which statement about a moving object is correct?

2010 Summer

2

MCQ

CH3 - FORCES AND PRESSURE

An experiment is carried out to measure the extension of a rubber band for different loads.The results are shown below.[Table_1]Which figure is missin...

2010 Summer

3

MCQ

CH4 - FORCES AND ENERGY

Energy is stored in a battery and in a box of matches. Which type of energy is stored in each of them? [Table_1]

2010 Summer

3
