Theory

CH8 - ELECTRICITY

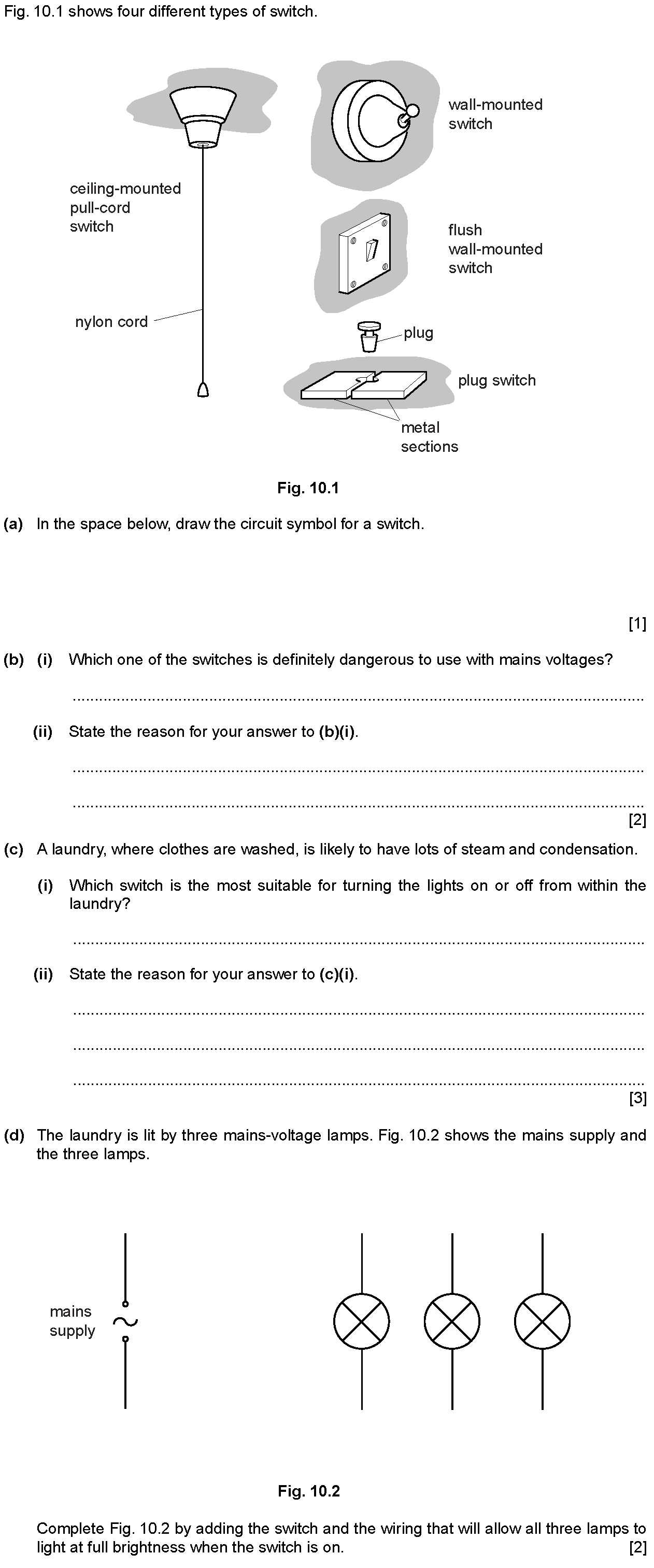

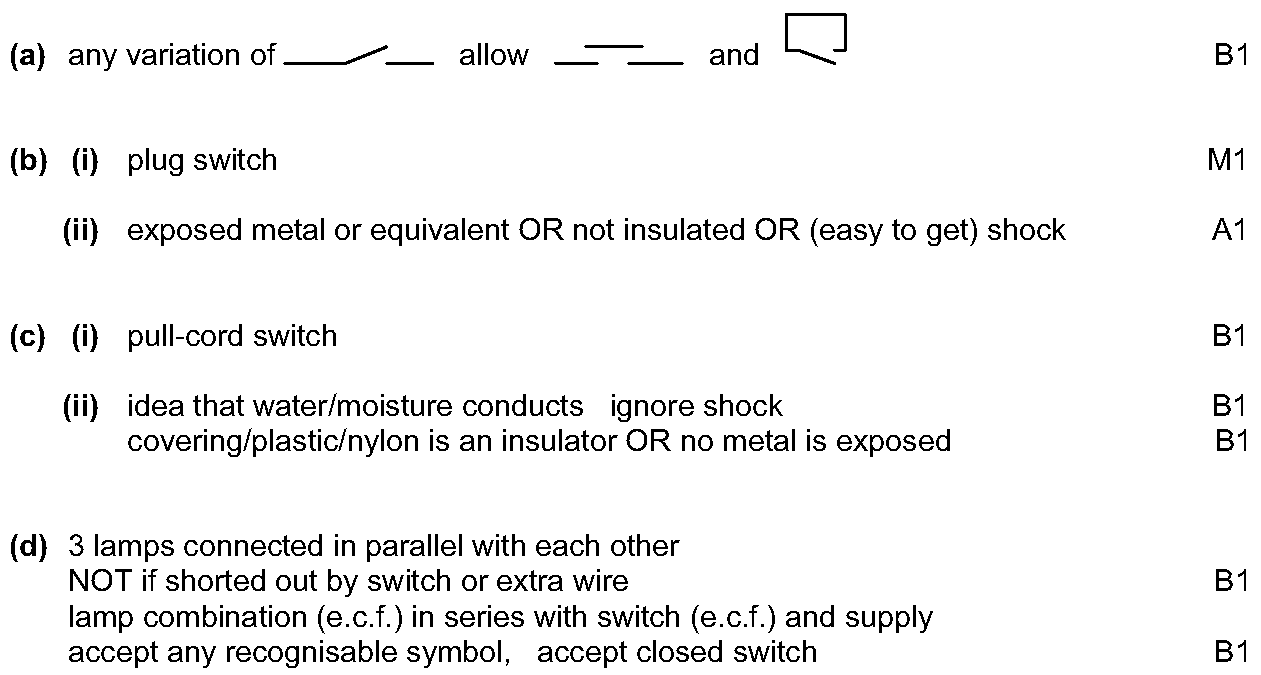

Fig. 10.1 shows four different types of switch.(a) In the space below, draw the circuit symbol for a switch.[1](b) (i) Which one of the switches is de...

2012 Summer

6

Theory

CH8 - ELECTRICITY

(a) Complete the following sentences.(i) An electric current exists in a wire when ...................................................... are made to ...

2012 Summer

4

Theory

CH8 - ELECTRICITY

Fig. 8.1 shows a cell.(a) What does the 1.5V indicate about the cell?.............................................................[2](b) Three cells i...

2012 Winter

2

Theory

CH8 - ELECTRICITY

Fig. 9.1 shows a time-delay circuit that includes a capacitor C and a resistor of very high resistance.[Image_1: Fig. 9.1 diagram](a) On Fig. 9.1, use...

2012 Winter

4

Theory

CH8 - ELECTRICITY

(a) Two light, identical spheres, A and B, are suspended alongside each other on thin nylon threads, as shown in Fig. 7.1.[Image_1: Diagram of two sph...

2011 Summer

2

Theory

CH8 - ELECTRICITY

Fig. 8.1 shows two resistors forming part of a circuit.(a) (i) Complete the following sentence about the two resistors connected between A and D.The t...

2011 Summer

2

Theory

CH8 - ELECTRICITY

(a) A car headlamp circuit consists of a 12V battery, a switch, two 12V headlamps and a 12V indicator lamp (inside the car).Fig. 9.1 shows the symbols...

2011 Summer

4

Theory

CH8 - ELECTRICITY

A length of bare uniform resistance wire is included in the circuit of Fig. 10.1. Contact C can be moved to any position along the resistance wire. ...

2012 Summer

4

Theory

CH8 - ELECTRICITY

Fig. 9.1 shows a simple circuit.(a) What is the value of(i) the e.m.f. of the battery, ..................................................................

2009 Summer

3

Theory

CH8 - ELECTRICITY

(a) Complete the following statement about an electric field.An electric field is a region in which .....................................................

2011 Winter

2

MCQ

CH1 - MEASUREMENTS AND UNITS

A cylindrical can is rolled along the ruler shown in the diagram. The can rolls over twice.What is the circumference (distance all round) of the can?

2012 Summer

1

MCQ

CH2 - FORCES AND MOTION

A car is moving downhill along a road at a constant speed. Which graph is the speed/time graph for the car? [Graph Options A, B, C, D]

2012 Summer

2

MCQ

CH2 - FORCES AND MOTION

In a race, a car travels 60 times around a 3.6 km track. This takes 2.4 hours.What is the average speed of the car?

2012 Summer

2

MCQ

CH3 - FORCES AND PRESSURE

Which quantity is measured in newtons?

2012 Summer

1

MCQ

CH3 - FORCES AND PRESSURE

A geologist places a small rock on the left-hand pan of a balance. The two pans are level as shown when masses with a total weight of 23N are placed o...

2012 Summer

2

MCQ

CH1 - MEASUREMENTS AND UNITS

A stone has a volume of 0.50 cm3 and a mass of 2.0 g. What is the density of the stone?

2012 Summer

3

MCQ

CH2 - FORCES AND MOTION

Passengers are not allowed to stand on the upper deck of double-decker buses. [Image_1: Diagram of a double-decker bus showing upper and lower decks]...

2012 Summer

2

MCQ

CH3 - FORCES AND PRESSURE

The diagram shows a handle with three forces, each 100 N, applied to it. The handle is free to move.What is the effect of the forces on the handle?

2012 Summer

3

MCQ

CH4 - FORCES AND ENERGY

In which pair of energy sources are both sources renewable?

2012 Summer

2

MCQ

CH4 - FORCES AND ENERGY

An object on a thread is swinging between X and Z, as shown in the diagram. It is momentarily at rest at X and at Z. An incomplete word equation about...

2012 Summer

3
