Theory

CH9 - MAGNETS AND CURRENTS

The coil in the d.c. motor in Fig. 9.1 is rotating as shown. (a) On Fig. 9.1, clearly label the coil. [1](b) State two things that could be done to th...

2012 Summer

5

Theory

CH9 - MAGNETS AND CURRENTS

A 240V a.c. mains supply is connected to the primary coil of the transformer shown in Fig. 10.1. A lamp that gives full brightness with a 6V supply is...

2012 Winter

5

Theory

CH9 - MAGNETS AND CURRENTS

Fig. 7.1 shows a compass needle that has come to rest in the Earth's magnetic field.(a) On Fig. 7.1, draw an arrow pointing towards the north pole of ...

2012 Winter

4

Theory

CH9 - MAGNETS AND CURRENTS

A rotating-coil generator consists of a rectangular coil of wire that rotates at constant speed between the poles of a permanent magnet. Figs. 10.1, 1...

2011 Summer

4

Theory

CH9 - MAGNETS AND CURRENTS

The apparatus in Fig. 10.1 is called a force-on-conductor balance. When there is an electric current $I$ as shown in XY, there is a force on XY that p...

2009 Summer

3

Theory

CH9 - MAGNETS AND CURRENTS

(a) Four rods are shown in Fig. 8.1.[Image_1: plastic rod, iron rod, wooden rod, brass rod]Fig. 8.1State which of these could be held in the hand at o...

2009 Summer

2

Theory

CH9 - MAGNETS AND CURRENTS

A solenoid with many turns is connected across a sensitive centre-zero millivoltmeter, as shown in Fig. 9.1. (a) The N pole of a magnet is moved in...

2012 Summer

4

Theory

CH9 - MAGNETS AND CURRENTS

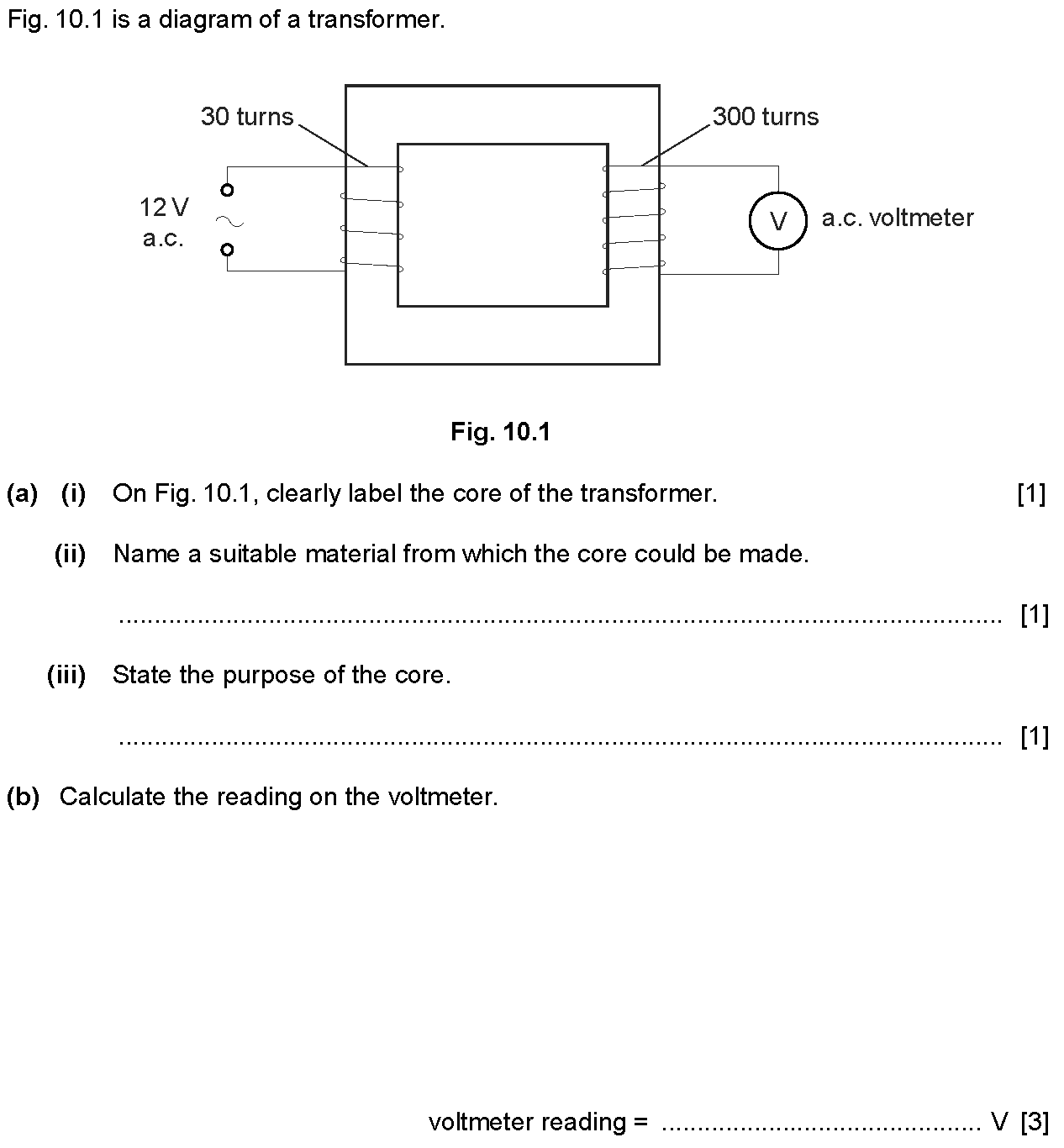

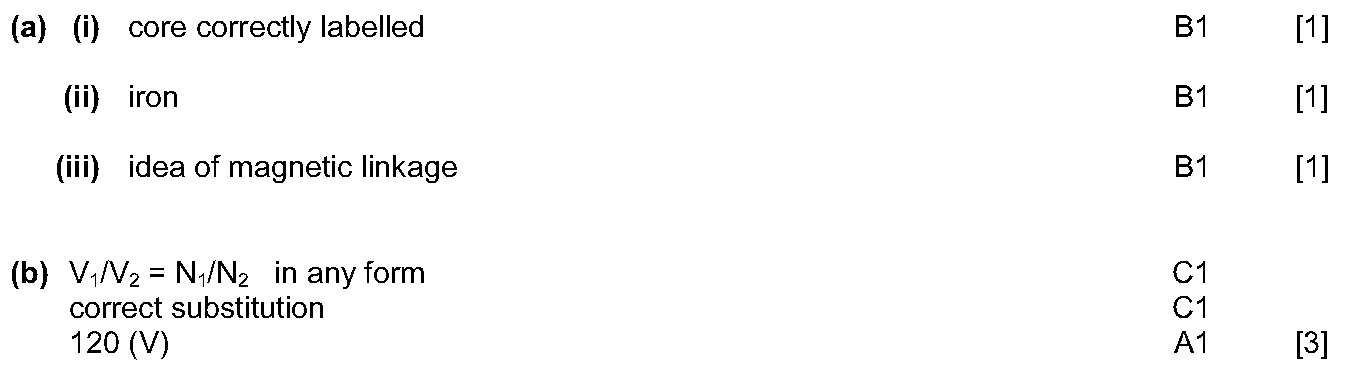

Fig. 10.1 is a diagram of a transformer.[Image_1: Fig. 10.1 diagram](a) (i) On Fig. 10.1, clearly label the core of the transformer. [1](ii) Name a su...

2009 Winter

2

Theory

CH9 - MAGNETS AND CURRENTS

The pivoted steel arrow from a small compass has become demagnetised. The coil shown in Fig. 7.1 is to be used to magnetise it again. (a) Describe ca...

2011 Winter

2

Theory

CH9 - MAGNETS AND CURRENTS

A woodworker buys an old electric drill that has been used before. The drill is illustrated in Fig. 11.1. The drill mechanism itself is guaranteed to ...

2009 Winter

3

MCQ

CH1 - MEASUREMENTS AND UNITS

A metre rule is used to measure a length. Which reading is shown to the nearest millimetre?

2009 Summer

2

MCQ

CH2 - FORCES AND MOTION

The graph represents the movement of a body.How far has the body moved after 5 s?

2009 Summer

2

MCQ

CH2 - FORCES AND MOTION

A car travels 100 km. The highest speed of the car is 90 km/h, and the lowest speed is 30 km/h. The journey takes two hours.What is the average speed ...

2009 Summer

2

MCQ

CH2 - FORCES AND MOTION

Which statement about the masses and weights of objects on the Earth is correct?

2009 Summer

2

MCQ

CH2 - FORCES AND MOTION

The table shows the weight in newtons of a 10 kg mass on each of four planets.[Table_1]The diagram shows a force meter (spring balance) being used.On ...

2009 Summer

2

MCQ

CH1 - MEASUREMENTS AND UNITS

Which items of apparatus are required to determine the density of a liquid?

2009 Summer

2

MCQ

CH2 - FORCES AND MOTION

Which property of an object cannot be changed by a force?

2009 Summer

2

MCQ

CH3 - FORCES AND PRESSURE

A wooden plank rests in equilibrium on two boulders on opposite sides of a narrow stream. Three forces of size $P$, $Q$ and $R$ act on the plank.How a...

2009 Summer

2

MCQ

CH4 - FORCES AND ENERGY

Electricity can be obtained from different energy resources.Which energy resource is used to obtain electricity without producing heat to boil water?

2009 Summer

2

MCQ

CH4 - FORCES AND ENERGY

Four people of equal weight on a beach use different routes to get to the top of a sea wall.The image shows a diagram illustrating this scenario: .Whi...

2009 Summer

3
