Theory

CH9 - MAGNETS AND CURRENTS

The coil in the d.c. motor in Fig. 9.1 is rotating as shown. (a) On Fig. 9.1, clearly label the coil. [1](b) State two things that could be done to th...

2012 Summer

5

Theory

CH9 - MAGNETS AND CURRENTS

A 240V a.c. mains supply is connected to the primary coil of the transformer shown in Fig. 10.1. A lamp that gives full brightness with a 6V supply is...

2012 Winter

5

Theory

CH9 - MAGNETS AND CURRENTS

Fig. 7.1 shows a compass needle that has come to rest in the Earth's magnetic field.(a) On Fig. 7.1, draw an arrow pointing towards the north pole of ...

2012 Winter

4

Theory

CH9 - MAGNETS AND CURRENTS

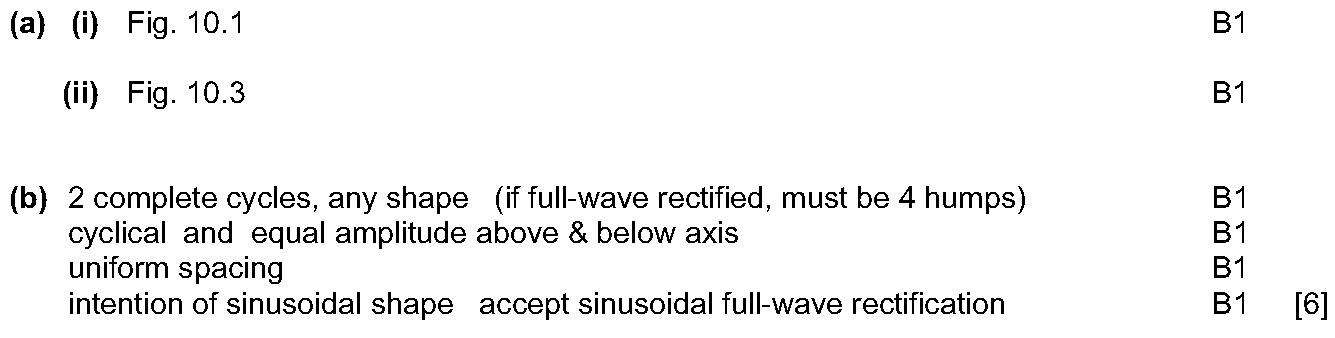

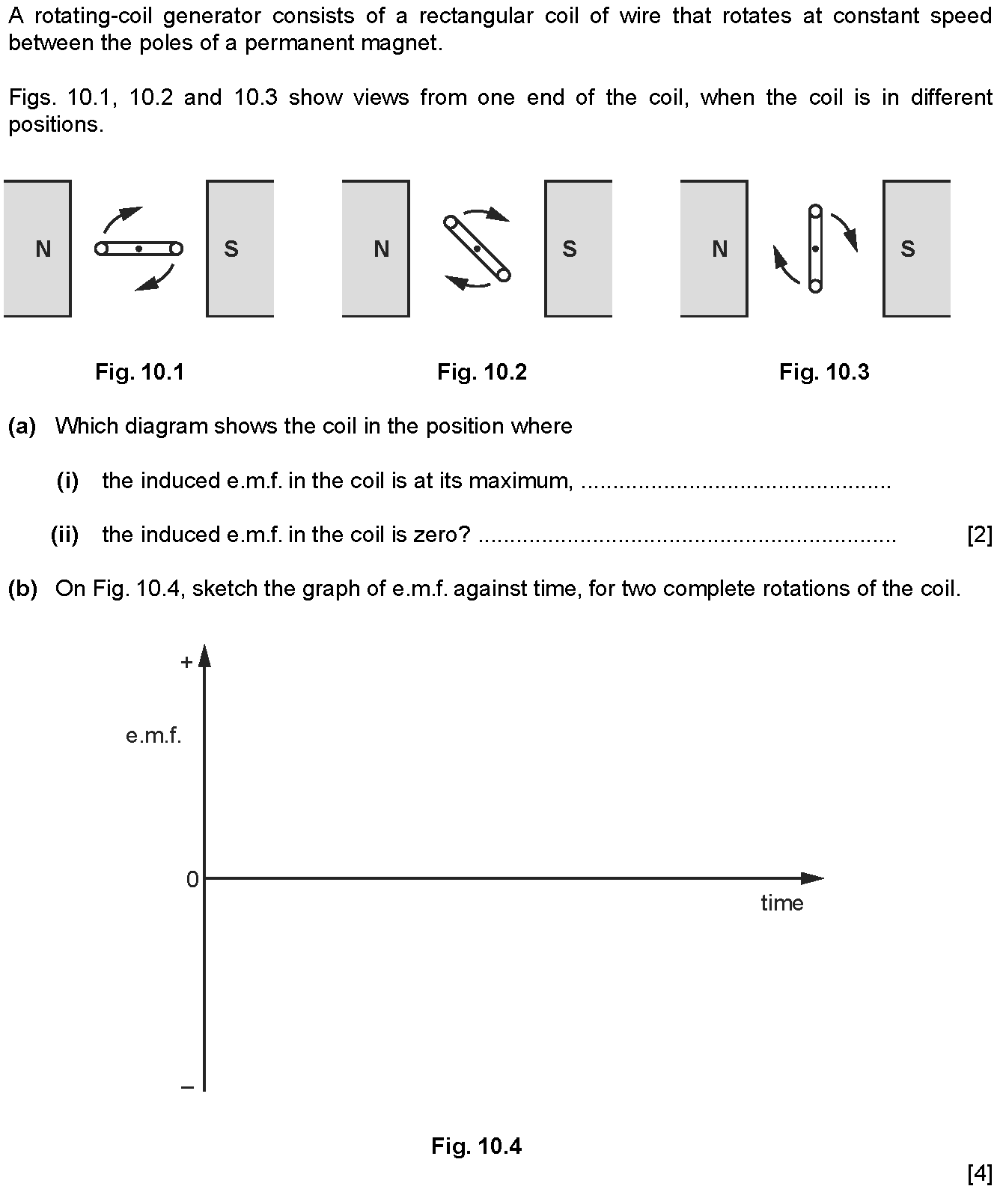

A rotating-coil generator consists of a rectangular coil of wire that rotates at constant speed between the poles of a permanent magnet. Figs. 10.1, 1...

2011 Summer

4

Theory

CH9 - MAGNETS AND CURRENTS

The apparatus in Fig. 10.1 is called a force-on-conductor balance. When there is an electric current $I$ as shown in XY, there is a force on XY that p...

2009 Summer

3

Theory

CH9 - MAGNETS AND CURRENTS

(a) Four rods are shown in Fig. 8.1.[Image_1: plastic rod, iron rod, wooden rod, brass rod]Fig. 8.1State which of these could be held in the hand at o...

2009 Summer

2

Theory

CH9 - MAGNETS AND CURRENTS

A solenoid with many turns is connected across a sensitive centre-zero millivoltmeter, as shown in Fig. 9.1. (a) The N pole of a magnet is moved in...

2012 Summer

4

Theory

CH9 - MAGNETS AND CURRENTS

Fig. 10.1 is a diagram of a transformer.[Image_1: Fig. 10.1 diagram](a) (i) On Fig. 10.1, clearly label the core of the transformer. [1](ii) Name a su...

2009 Winter

2

Theory

CH9 - MAGNETS AND CURRENTS

The pivoted steel arrow from a small compass has become demagnetised. The coil shown in Fig. 7.1 is to be used to magnetise it again. (a) Describe ca...

2011 Winter

2

Theory

CH9 - MAGNETS AND CURRENTS

A woodworker buys an old electric drill that has been used before. The drill is illustrated in Fig. 11.1. The drill mechanism itself is guaranteed to ...

2009 Winter

3

MCQ

CH1 - MEASUREMENTS AND UNITS

The diagram shows an enlarged drawing of the end of a metre rule. It is being used to measure the length of a small feather. What is the length of t...

2011 Summer

2

MCQ

CH2 - FORCES AND MOTION

An object moves initially with constant speed and then with constant acceleration. Which graph shows this motion?

2011 Summer

2

MCQ

CH6 - WAVES AND SOUNDS

A tennis player hits a ball hard and 0.40 s later hears the echo from a wall.The speed of sound in air is 330 m/s.How far away is the player from the ...

2011 Summer

3

MCQ

CH2 - FORCES AND MOTION

Which statement about mass and weight is correct?

2011 Summer

3

MCQ

CH3 - FORCES AND PRESSURE

The diagram shows a balance being used to find the weight of a baby. The weight of the basket can be ignored.At equilibrium, the pivot is nearer to th...

2011 Summer

2

MCQ

CH1 - MEASUREMENTS AND UNITS

A cube of side 2.0 cm is placed on a balance.What is the density of the cube?

2011 Summer

2

MCQ

CH3 - FORCES AND PRESSURE

Objects with different masses are hung on a spring. The diagram shows how much the spring stretches. The extension of the spring is directly propor...

2011 Summer

2

MCQ

CH4 - FORCES AND ENERGY

Which row gives an example of the stated form of energy? [Table_1]

2011 Summer

2

MCQ

CH4 - FORCES AND ENERGY

Which energy resource is used to generate electricity by first boiling water?

2011 Summer

2

MCQ

CH4 - FORCES AND ENERGY

Two farmers use an electrically powered elevator to lift bales of hay. All the bales of hay have the same mass.As sunset approaches, they increase the...

2011 Summer

2
