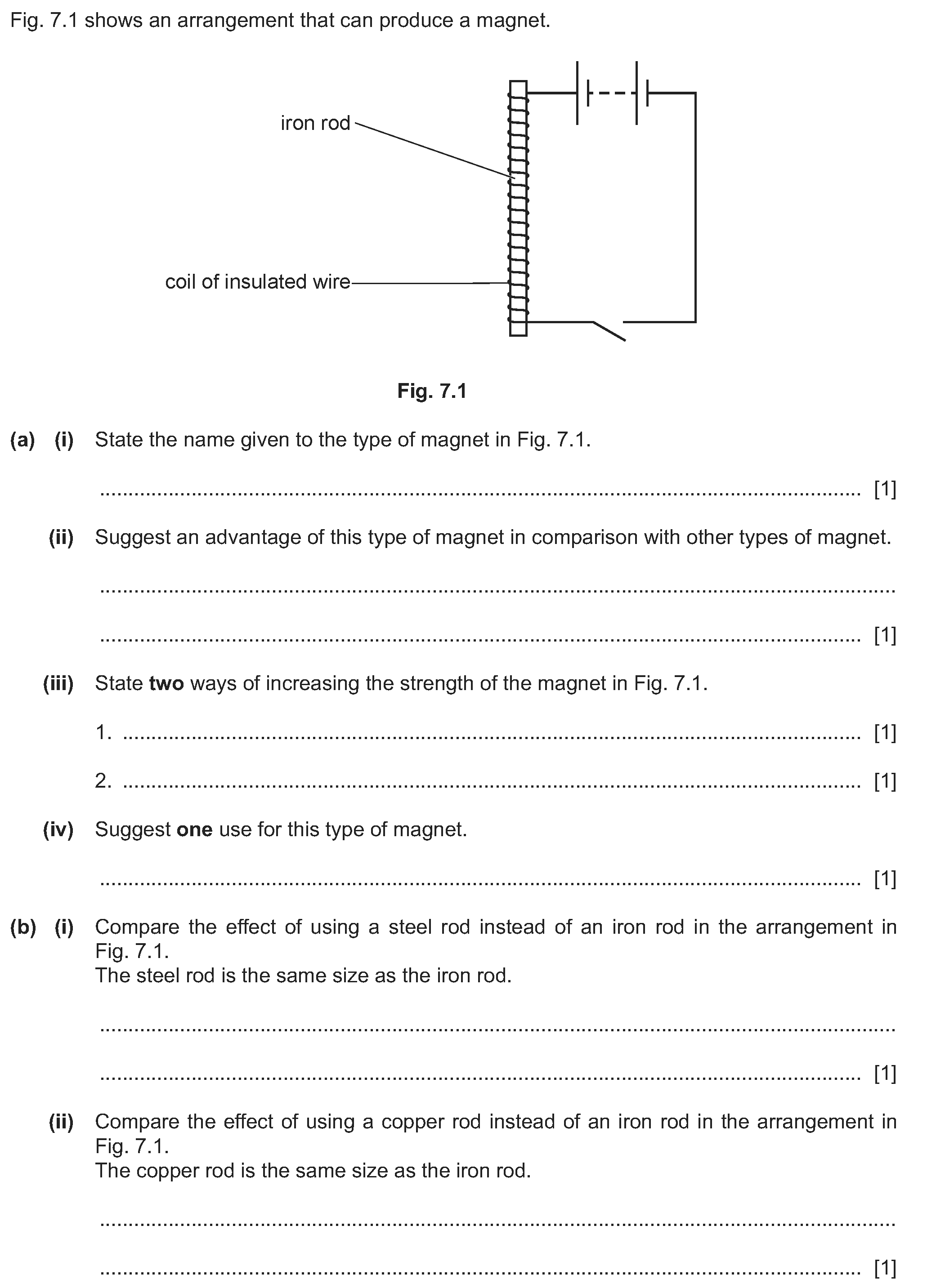

Q7:
Cambridge IGCSE Physics - 0625 - Core Paper 3 2022 Winter Zone 2
Share
Previous
Questions:
7/11
Topic: CH9 - MAGNETS AND CURRENTS

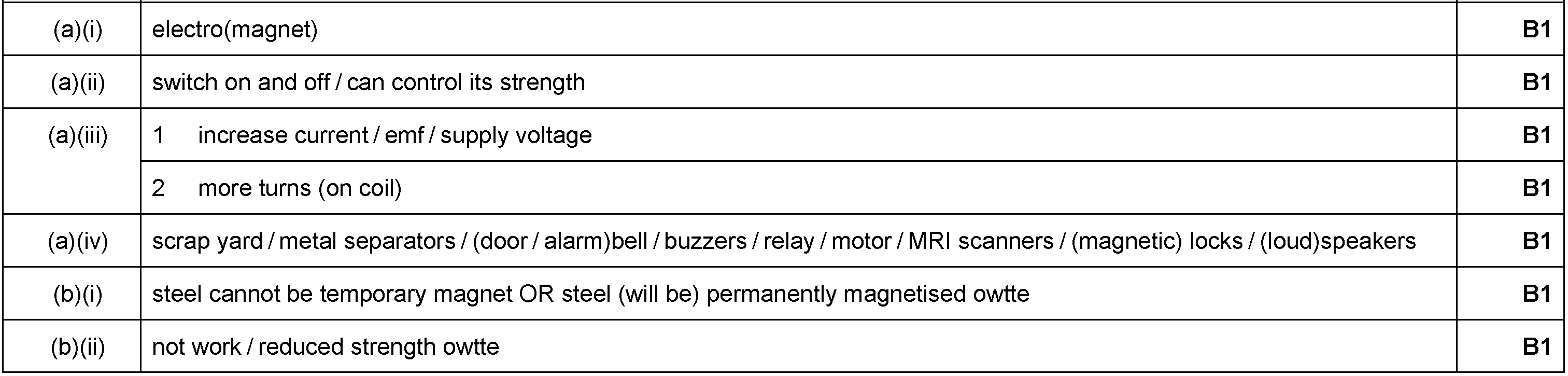

Solution
