All living organisms have the same characteristics.
Two of these characteristics are movement and nutrition.
(a) State three other characteristics of living organisms.
1 .............................................................................................................................................
2 .............................................................................................................................................
3 ............................................................................................................................................. [3]
(b) Fig. 1.1 shows animals that belong to one vertebrate group.
State the name of this vertebrate group and give one visible characteristic feature of this group.
[Image_1: Fig. 1.1]
name of group .............................................
feature of group .......................................... [2]
(c) State the names of two other groups of vertebrates.
1 ....................................................................
2 .................................................................... [2]
522
575
565
Fig. 2.1 shows a plant cell after it has been in a solution of glucose for fifteen minutes.
(a) Draw label lines on Fig. 2.1 to link each label to the correct structure. [3]
(b) The plant cell in Fig. 2.1 was then placed in distilled water.
Fig. 2.2 shows the appearance of the cell after fifteen minutes in distilled water.
(i) State two ways in which the plant cell has changed. [2]
(ii) Explain why the plant cell changed when it was placed in distilled water. [3]
517
564
503
(a) The boxes on the left contain the names of components of the diet.
The boxes on the right contain the functions of these components in the body.
Draw one straight line to link each component of the diet to its correct function.
Draw four lines.
component of the diet | function
calcium ions | bone formation
fat | growth of muscles
protein | insulation
vitamin D
[4]
(b) Fig. 3.1 shows the average percentage composition of some common foods.
!
Fig. 3.1
(i) State the type of food in Fig. 3.1 that contains the most fat.
....................................................................................................................... [1]
(ii) State one type of food in Fig. 3.1 that does not contain fibre.
....................................................................................................................... [1]
(c) Describe the importance of fibre in the diet.
.......................................................................................................................
.......................................................................................................................
....................................................................................................................... [1]
(d)(i) State one food that contains vitamin C.
....................................................................................................................... [1]
(ii) State one disease caused by a lack of vitamin C.
....................................................................................................................... [1]
(e) Table 3.1 shows the energy used by an adult male over 24 hours.
[Table_1]
Table 3.1
(i) Calculate the total energy used by the adult male in 24 hours.
.................................................. kJ [1]
(ii) Calculate the percentage of energy used by the adult male while sleeping.
.................................................. % [1]
(iii) State the name of the process that releases energy to maintain a constant body temperature while the adult male is sleeping.
....................................................................................................................... [1]
550
594
514
(a) Complete the sentences about human influences on ecosystems.
Use words from the list.
Each word may be used once, more than once, or not at all.
deforestation fertilisers herbicides
insecticides livestock monoculture
pectinases pollinate pollute
When one type of crop of the same species is grown on a large scale it is called a ................................................. .
Chemical ................................................. add mineral ions to the soil to increase the yield of crops.
Weeds can be killed by ................................................. .
Crop damage by insects can be reduced by the use of ................................................. . One disadvantage is that this kills useful insects which ................................................. flowers. [5]
(b) State the names of two greenhouse gases that are produced as a consequence of farming.
1 .....................................................................................................................................................................
2 ..................................................................................................................................................................... [2]
525
594
574
(a) (i) Complete Table 5.1 using the information in Fig. 5.1.
One has been done for you.
[Table_5.1]
| number shown in Fig. 5.1 | |
| producers | 2 |
| herbivores | |
| primary consumers | |
| carnivores |
(ii) State the name of one organism in Fig. 5.1 which obtains its energy from eating three different organisms.
................................................................................................................................. [1]
(b) A disease killed most of the snakes in the food web in Fig. 5.1.
Complete the sentences by circling the correct words in bold.
The first one has been done for you.
The population of snakes increases / decreases / stays the same .
The population of spiders increases / decreases / stays the same because there is less predation / food / competition .
The population of caterpillars increases / decreases / stays the same because there is more predation / food / competition .
(c) Decomposers are not shown in the food web in Fig. 5.1.
Complete the definition of the term decomposer.
A decomposer is an organism that gets its ................................................... from dead or waste ................................................... material.
(d) Fig. 5.2 shows a food chain.
[Image]
[Fig. 5.2]
Table 5.2 shows the number of organisms in this food chain and some of the information needed to draw a pyramid of numbers.
[Table_5.2]
| organism | number of organisms | width of bar in pyramid / mm |
| bird | 2 | |
| caterpillar | 20 | 80 |
| cabbage | 1 | 4 |
(i) Complete Table 5.2 by calculating the missing value and writing it in the table. [1]
(ii) Complete the pyramid of numbers on the grid for the food chain shown in Fig. 5.2 using the information in Table 5.2. The bar for the cabbage has been done for you.
Label the organisms on the pyramid of numbers. [3]
543
522
503
(a) Define the term drug.
.................................................................................................................
.................................................................................................................
................................................................................................................. [2]
(b) Antibiotics are a type of drug. State the type of infection antibiotics are used to treat.
................................................................................................................. [1]

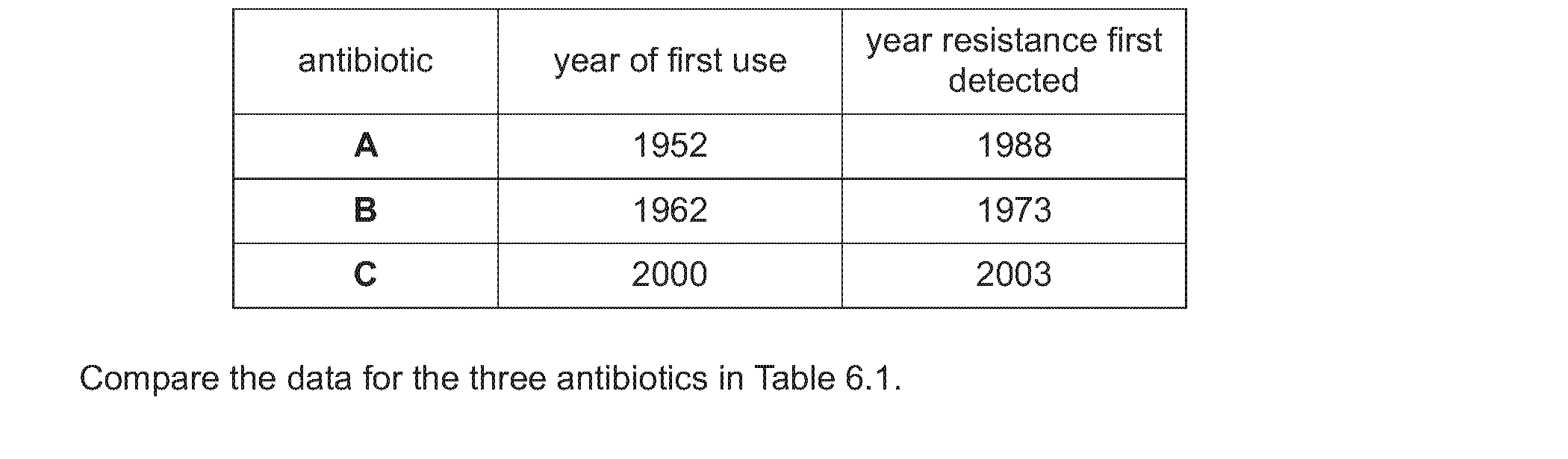

(c) Table 6.1 shows the year in which three different types of antibiotics were first used and the year that antibiotic resistance was first detected.
[Table_1]
Compare the data for the three antibiotics in Table 6.1.
.................................................................................................................
.................................................................................................................
.................................................................................................................
.................................................................................................................
................................................................................................................. [3]
(d) The body has defences against infections caused by pathogens. State three body defences that prevent pathogens from entering the body.
1 .................................................................................................................
2 .................................................................................................................
3 ................................................................................................................. [3]
530
521
563
Fig. 7.1 shows part of the female human reproductive system.
[Image_1: Fig. 7.1]
(a) State the names of the structures labelled X, Y and Z on Fig. 7.1.
X ...................................................................................................................................................
Y ...................................................................................................................................................
Z ...................................................................................................................................................[3]
(b) The box on the left shows the beginning of a sentence. The boxes on the right show some endings of sentences. Draw three lines from the word oestrogen to make complete three correct sentences.
[Image_2: Oestrogen is a hormone. is produced in the ovaries. makes breasts grow. makes hair grow on the chest. travels down the oviduct. widens the pupils.]
[3]
(c) The average menstrual cycle is 28 days.
(i) State the day in an average menstrual cycle when:
ovulation occurs .........................................................................................................................
the uterus lining starts to shed ..................................................................................................
the uterus lining is at its thinnest ................................................................................................[3]
(ii) Describe one change, other than ovulation, that occurs in the ovary during the menstrual cycle.
.......................................................................................................................................................
.......................................................................................................................................................
.......................................................................................................................................................[1]
588
531
587
Plants carry out photosynthesis.
(a) State the names of two substances produced by photosynthesis.
1 ...........................................................................................................................
2 ...........................................................................................................................[2]
(b) A student investigated how temperature affects the rate of photosynthesis. The concentration of carbon dioxide was kept constant during the investigation.
The results are shown in Fig. 8.1.
(i) Predict how the rate of photosynthesis will change when carbon dioxide concentration increases and the temperature is kept constant at 20°C.
.............................................................................................................................
.............................................................................................................................
............................................................................................................................. [1]
(ii) State one factor other than temperature and carbon dioxide concentration that will affect the rate of photosynthesis.
............................................................................................................................. [1]
(c) In another investigation students used a plant which had variegated leaves.
One of the leaves from this plant is shown in Fig. 8.2.
Complete Table 8.1 to show where the processes of photosynthesis and respiration occurred in this variegated leaf when the plant was in the light.
Place a tick (✓) in each correct box.
[Table_1]
process | area A | area B
photosynthesis | |
respiration | |
[2]
(d) Cells in the mesophyll layers of a leaf carry out photosynthesis.
State the names of two leaf layers that light must pass through to reach the spongy mesophyll cells.
1 ...........................................................................................................................
2 ...........................................................................................................................[2]
(e) Plants absorb mineral ions from the soil.
(i) State the name of the tissue that transports mineral ions in plants.
............................................................................................................................. [1]
(ii) State the name of the mineral ion that is used to make chlorophyll.
............................................................................................................................. [1]
(iii) State the name of the mineral ion that is used to make amino acids.
............................................................................................................................. [1]
(f) Plants are involved in nutrient cycles in ecosystems. Describe the role of plants in the carbon cycle and the water cycle.
.............................................................................................................................
.............................................................................................................................
.............................................................................................................................
.............................................................................................................................
.............................................................................................................................
.............................................................................................................................
.............................................................................................................................
[4]
